Product description

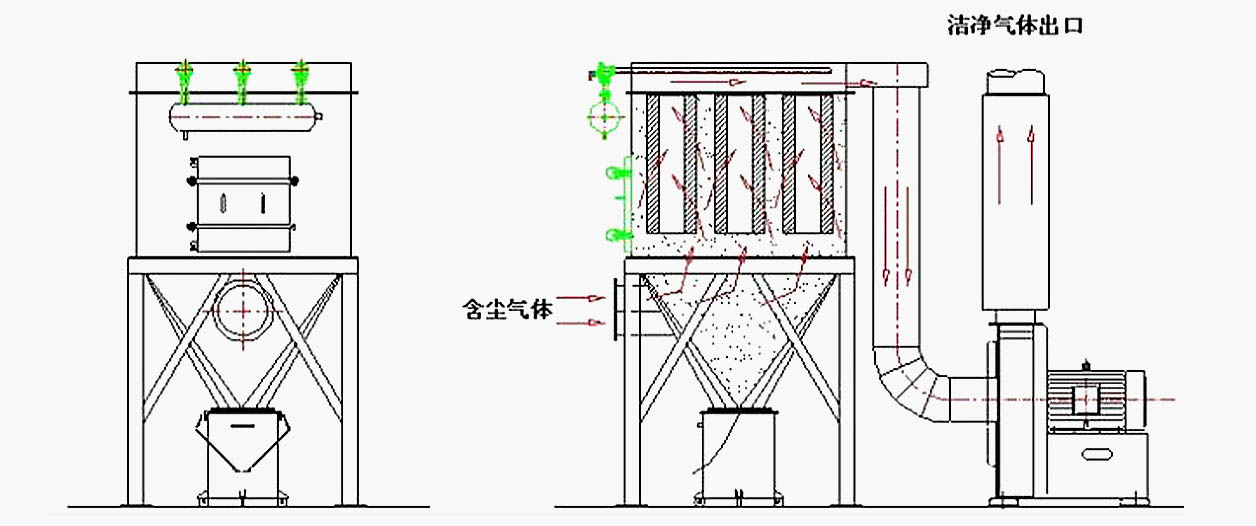

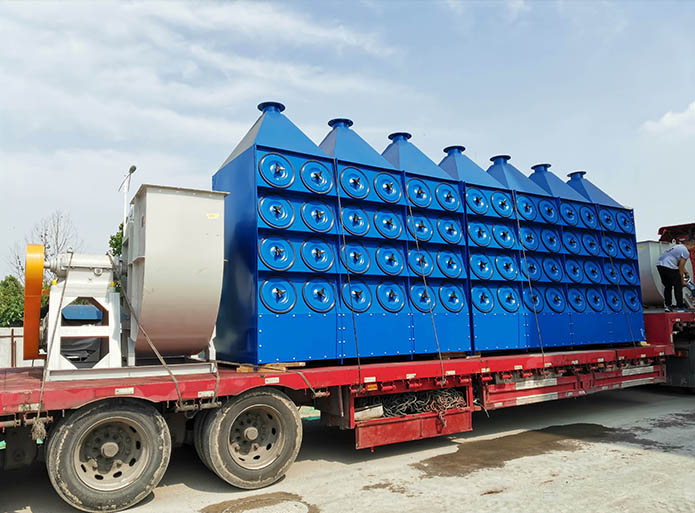

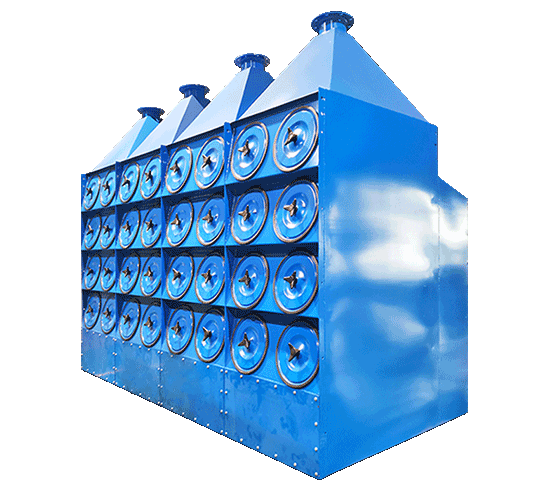

LF-XLC and LF-HLC are modular cartridge dust collectors for fine process dust. Dust-laden gas enters the hopper, where the sudden widening of the gas stream and a distribution plate let coarse particles drop out. Finer dust moves into the filter chamber and is held on the cartridge surface by diffusion and sieving, and the cleaned gas leaves through the clean-air chamber to the fan. A pulse-jet cleans cartridges in turn so the others keep working, which allows continuous operation. The cartridges have no moving parts and are pleated to pack more filter area into a compact body.
The range is built in steps. LF-XLC 6 offers 12 to 72 cartridges (120–720 m², 7,200–43,200 m³/h), LF-XLC 8 offers 16 to 128 cartridges (160–1,280 m², 9,600–76,800 m³/h), and LF-HLC 8 offers 8 to 64 cartridges (120–960 m², 7,200–57,600 m³/h). Published applications include machining, chemical production, powder recovery, building-material manufacturing, pharmaceutical production and food processing.
To select a model, begin with the dust-laden airflow, then describe the dust (fine, damp, fibrous or sticky), the gas temperature and the space you have. Send us these details and we will recommend a configuration and confirm cartridge media and options with you.
Frequently asked questions
What is the difference between the XLC and HLC series?
They use different cartridge models, LFKL-3266 for XLC and LFKL-3210 for HLC, and different cabinet dimensions. HLC models list 8 to 64 cartridges with filter areas of 120 to 960 m². Send us your airflow and available space and we will advise which suits you.
How do I choose the model size?
Use the recommended airflow for each model as a starting point. For example, the LF-XLC 6-1 is listed at 7,200 m³/h with 12 cartridges. Your dust type and temperature may change the choice, so please contact us for confirmation.
Can the cartridge media be customized?
The published data do not list cartridge media options for these models. Please tell us your dust type and gas temperature and we will confirm suitable cartridge media and other options.
What are the minimum order quantity and lead time?
Minimum order quantity and lead time depend on the model, options and order size. Please contact us to confirm.
- Model series
- LF-XLC 6, LF-XLC 8, LF-HLC 8
- Application
- Machining, chemical production, powder recovery, building-material manufacturing, pharmaceutical production, food processing and similar industries
- Medium
- Airborne particles and dust
- Cleaning
- Pulse cleaning; cartridges are cleaned in turn while the others keep working
- Cartridge model (XLC)
- LFKL-3266
- Cartridge model (HLC)
- LFKL-3210
- Dust removal efficiency (manufacturer-stated)
- Up to 99.9 %
- LF-XLC 6-1
- 12 cartridges · 120 m² filter area · 7,200 m³/h recommended · 1010×2300×3600 mm
- LF-XLC 6-2
- 24 cartridges · 240 m² filter area · 14,400 m³/h recommended · 2020×2300×3600 mm
- LF-XLC 6-3
- 36 cartridges · 360 m² filter area · 21,600 m³/h recommended · 3030×2300×3600 mm
- LF-XLC 6-4
- 48 cartridges · 480 m² filter area · 28,800 m³/h recommended · 4040×2300×3600 mm
- LF-XLC 6-5
- 60 cartridges · 600 m² filter area · 36,000 m³/h recommended · 5050×2300×3600 mm
- LF-XLC 6-6
- 72 cartridges · 720 m² filter area · 43,200 m³/h recommended · 6060×2300×3600 mm
- LF-XLC 8-1
- 16 cartridges · 160 m² filter area · 9,600 m³/h recommended · 1010×2300×4080 mm
- LF-XLC 8-2
- 32 cartridges · 320 m² filter area · 19,200 m³/h recommended · 2020×2300×4080 mm
- LF-XLC 8-3
- 48 cartridges · 480 m² filter area · 28,800 m³/h recommended · 3030×2300×4080 mm
- LF-XLC 8-4
- 64 cartridges · 640 m² filter area · 38,400 m³/h recommended · 4040×2300×4080 mm
- LF-XLC 8-5
- 80 cartridges · 800 m² filter area · 48,000 m³/h recommended · 5050×2300×4080 mm
- LF-XLC 8-6
- 96 cartridges · 960 m² filter area · 57,600 m³/h recommended · 6060×2300×4080 mm
- LF-XLC 8-7
- 112 cartridges · 1120 m² filter area · 67,200 m³/h recommended · 7070×2300×4080 mm
- LF-XLC 8-8
- 128 cartridges · 1280 m² filter area · 76,800 m³/h recommended · 8080×2300×4080 mm
- LF-HLC 8-1
- 8 cartridges · 120 m² filter area · 7,200 m³/h recommended · 1050×1800×4150 mm
- LF-HLC 8-2
- 16 cartridges · 240 m² filter area · 14,400 m³/h recommended · 2100×1800×4150 mm
- LF-HLC 8-3
- 24 cartridges · 360 m² filter area · 21,600 m³/h recommended · 3150×1800×4150 mm
- LF-HLC 8-4
- 32 cartridges · 480 m² filter area · 28,800 m³/h recommended · 4200×1800×4150 mm
- LF-HLC 8-5
- 40 cartridges · 600 m² filter area · 36,000 m³/h recommended · 5250×1800×4150 mm
- LF-HLC 8-6
- 48 cartridges · 720 m² filter area · 43,200 m³/h recommended · 6300×1800×4150 mm
- LF-HLC 8-7
- 56 cartridges · 840 m² filter area · 50,400 m³/h recommended · 7350×1800×4150 mm
- LF-HLC 8-8
- 64 cartridges · 960 m² filter area · 57,600 m³/h recommended · 8400×1800×4150 mm
